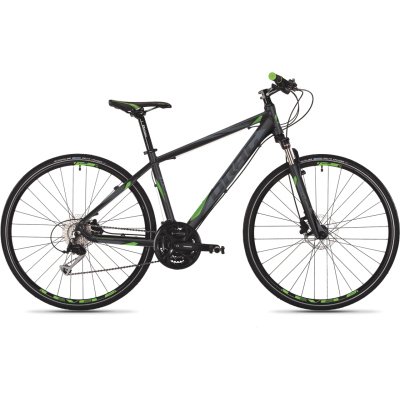

Drag Grand Canyon TE Alivio City Bike

Grand Canyon combines the speed of a road bike with the comfort of a city bike. Thanks to its front suspension, low weight and mountainbike drivetrain, the bike performs perfectly both around town and on longer distances.

Specification

• FRAME: Grand Canyon, Alloy Hydroformed
• HEADSET: COX IZS44/28.6 l ZS44/30
• CRANKSET: Shimano Acera M371 48/36/26 170mm
• SHIFTERS: Shimano Altus M2000, 3×9 Speed
• FRONT DERAILLEUR: Shimano Altus M310
• REAR DERAILLEUR: Shimano Alivio T4000 SGS, 9 Speed
• CASSETTE: SH CS-HG400-9?? 11/32T
• CHAIN: YBN S9
• PEDALS: Nylon Platform, 9/16“
• HANDLEBAR: COX BAAR Low, Backsweep 6°, Upsweep 3°, Rise 20mm, 31.8mm
• STEM: COX ZX40, Forged Alloy, +-6° 31.8mm
• GRIPS: COX Dual Comp, Green Neon/Black 130mm
• BRAKES: Tektro HD-285 Hydraulic
• ROTORS: Tekto 160mm
• SADDLE: Cox StrikePro
• SEAT POST: COX 6061SE, Single Bolt, Offset 13mm, 31.6mm
• SEAT POST CLAMP: COX Speed , Forged Alloy, Singe Bolt, 34.9mm
• WHEELS: Drag Hand Build, Double Wall, Loose Bearings
• TIRES: Schwalbe 28×1.4 Delta Cruiser Kevlar Guard
• WEIGHT: 14.8 kg

Geometry
