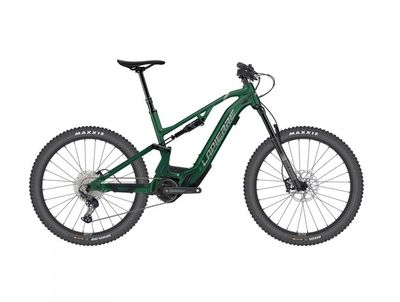

Lapierre Overvolt TR 4.6 27.5 Electric Mountain Bike

Specifications

• Frame: Overvolt FS 130mm travel integrated Bosch Supreme 5 alloy (UDH Dropout )
• Fork: RockShox 35 Silver TK Coil 15x110mm 29’’ 130mm travel 44mm offset Fender compatible
• Shock: Lapierre Shock Trunnion 185x50mm
• Rear derailleur: Shimano Deore RD-M5120, 10s
• Crankset: Lapierre Overvolt ISIS 155mm (XS) / 160mm (S/M) / 165mm (L/XL) + E13 steel ring 34T
• System: Bosch Performance Line CX Gen4 625Wh PowerTube Purion
• Sprocket: Shimano Deore CS-M4100 11-46T 10s
• Chain: KMC E10 Turbo 10s
• Brakes: Shimano M4100 4 (front) / 2 (rear) pistons
• Rotors: Shimano SMRT30 203mm (front) / RTEM300 with Magnet 180mm (XS/S/M), 203mm (L/XL) (rear) centerlock
• Shiftlevers: Shimano Deore SL-M4100 10s
• Headset: FSA NO.55R/57E, Anodized black 1-1/8”-1.5”
• Handlebar: Lapierre alloy 6061DB, Width: 760mm, Rise: 15mm (XS/S/M), 30mm (L/XL), Ø: 31.8mm
• Grips: Lapierre grips, XS/S/M: small diameter, L/XL: large diameter
• Stem: Lapierre CNC, 0°, Ø: 31.8mm, L: 40mm (XS) L: 45mm (S/M), 50mm (L/XL)
• Seatpost: Lapierre dropper, Ø: 31.6mm, travel 80mm (XS), 100mm (S), 130mm (M) 150mm (L/XL) + Shimano lever
• Saddle: Selle Royal Vivo
• Front hub: Lapierre DA210, boost 15x110, 32H Center Lock
• Rear hub: Lapierre DA210, 4 sealed bearings, boost 12x148, 32H Center Lock
• Rims: Lapierre eAM+ 32H, 584x35 Tubeless Ready
• Tires: Maxxis, front: 27.5x2.6 Minion DHF, 60TPI, EXO, TR, rear: 27.5x2.6 Rekon 60TPI, EXO, TR
• Pedals: VP VPE-527
• Accessories: Bosch charger 4A, thru-axle multitool lever, tubeless flap + valves

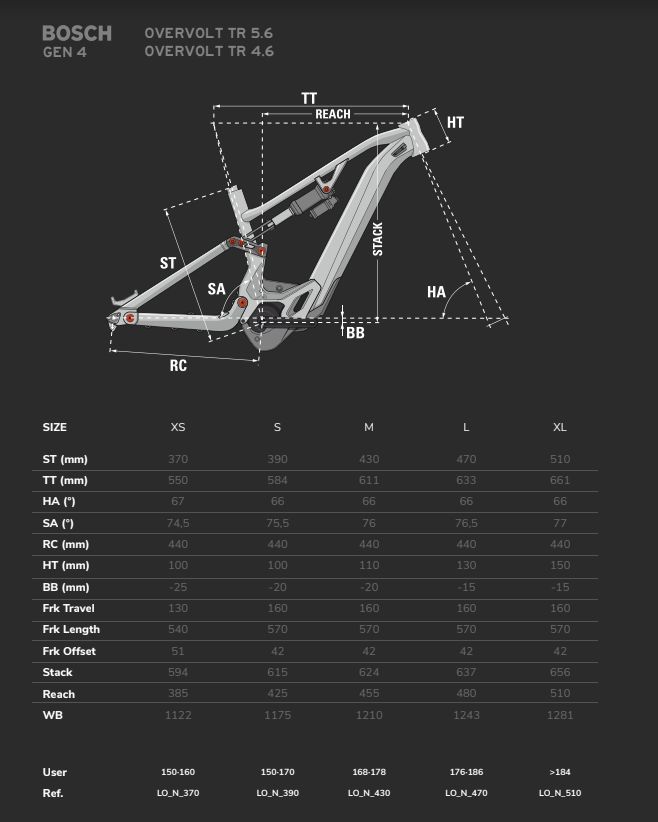

Geometry
