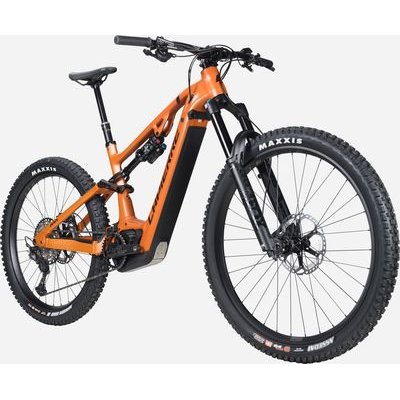

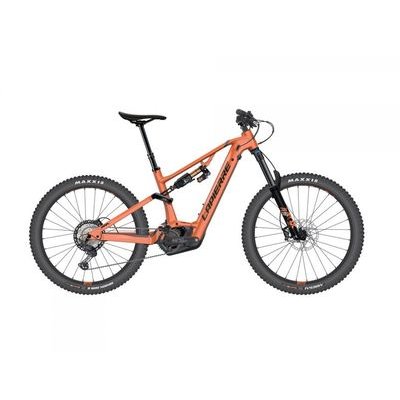

Lapierre Overvolt AM 8.7 Electric Mountain Bike

The Overvolt AM is a true mountain all-rounder: as capable climbing as it is descending. This electric assist mountain bike has been developed with focus on centralising and lowering its centre of gravity, to face the most technical terrain. The mixed wheel sizes give the best of both worlds. The result being a delight to ride with unlimited pleasure.

Specifications

• Brake Lever: Shimano XT M8120 4 pistons

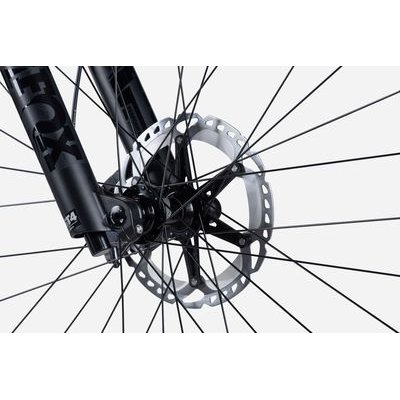

• Brakes Front: Shimano RTMT800 203mm (front) / RTMT800 with Magnet 203mm (rear) centerlock
• Fork: Fox 38 Float Performance 29' 15x110, 170mm travel, 44mm offset / 3-position lever
• Frame: New Overvolt 160mm travel integrated Bosch Supreme 5 alloy (UDH Dropout)

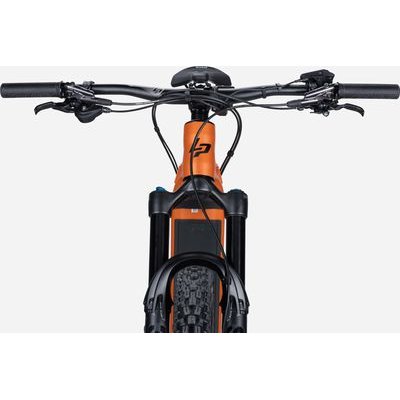

• Handlebar: Lapierre alloy 6061DB, Width: 780mm, Rise: 15mm (S/M), Width: 780mm, Rise: 30mm (L/XL), Ø: 31.8mm
• Headset: FSA NO.55R/57E, Anod black 1-1/8"-1.5"
• Model Year: 2023
• Pedals: VP VPE-527
• Shift Lever: Shimano SLX 12s

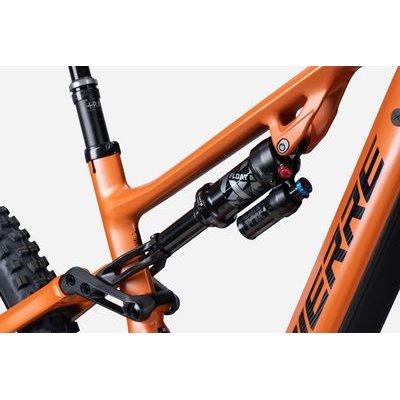

• Shock Absorber: Fox Float X Performance 230x60mm 2-position lever
• Stem: Lapierre CNC Ø: 31.8mm L: 40mm(S,M) 45mm(L,XL)
• Battery Watts per Hour: 750wh
• Display: Led Remote + KIOX 300
• Motor: Bosch Performance Line CX Gen4 750Wh PowerTube / LED Remote + KIOX 300
• Grips: Lapierre Grips S/M: Small Diameter L/XL: Large Diameter

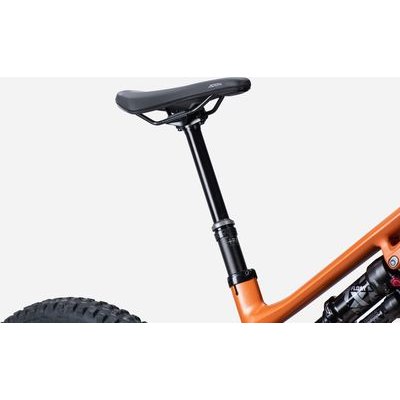

• Saddle: Fizik Terra Aidon X5 145mm
• Seat Post: JD Dropper “Rad Travel Adjust” Ø: 31.6mm Travel: 125mm(S) 150mm(M) 170mm (L/XL)

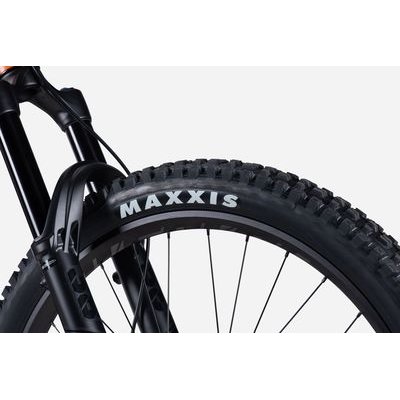

• Tyres: Maxxis, front: 29x2.5 WT Assegai, 60TPI, EXO+, 3C MaxxGrip, TR / rear: 27.5x2.8 Minion DHR II 60TPI, EXO+, 3C Maxxterra, TR
• Wheel Set: Lapierre eAM+ alloy 32H, front: 622x33 J-bend, rear: 584x35 J-bend Tubeless Ready
• Chain: Shimano SLX CN-M7100 12s

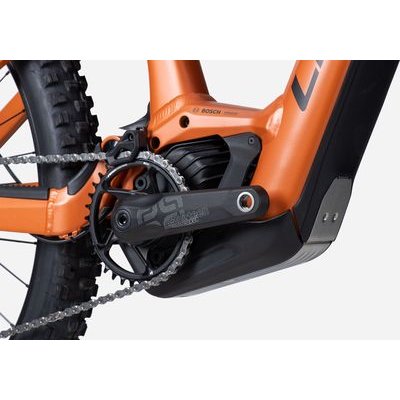

• Crankset: E13 E-spec+ alloy 160mm (S/M) / 165mm (L/XL) + E13 alloy Ring 34T
• Rear Derailleur: Shimano XT RD-M8100, 12s
• Sprocket: Shimano SLX CS-M7100 10-51T 12s
• Accessories: Bosch Charger 4A / thru axle multitool lever / valves

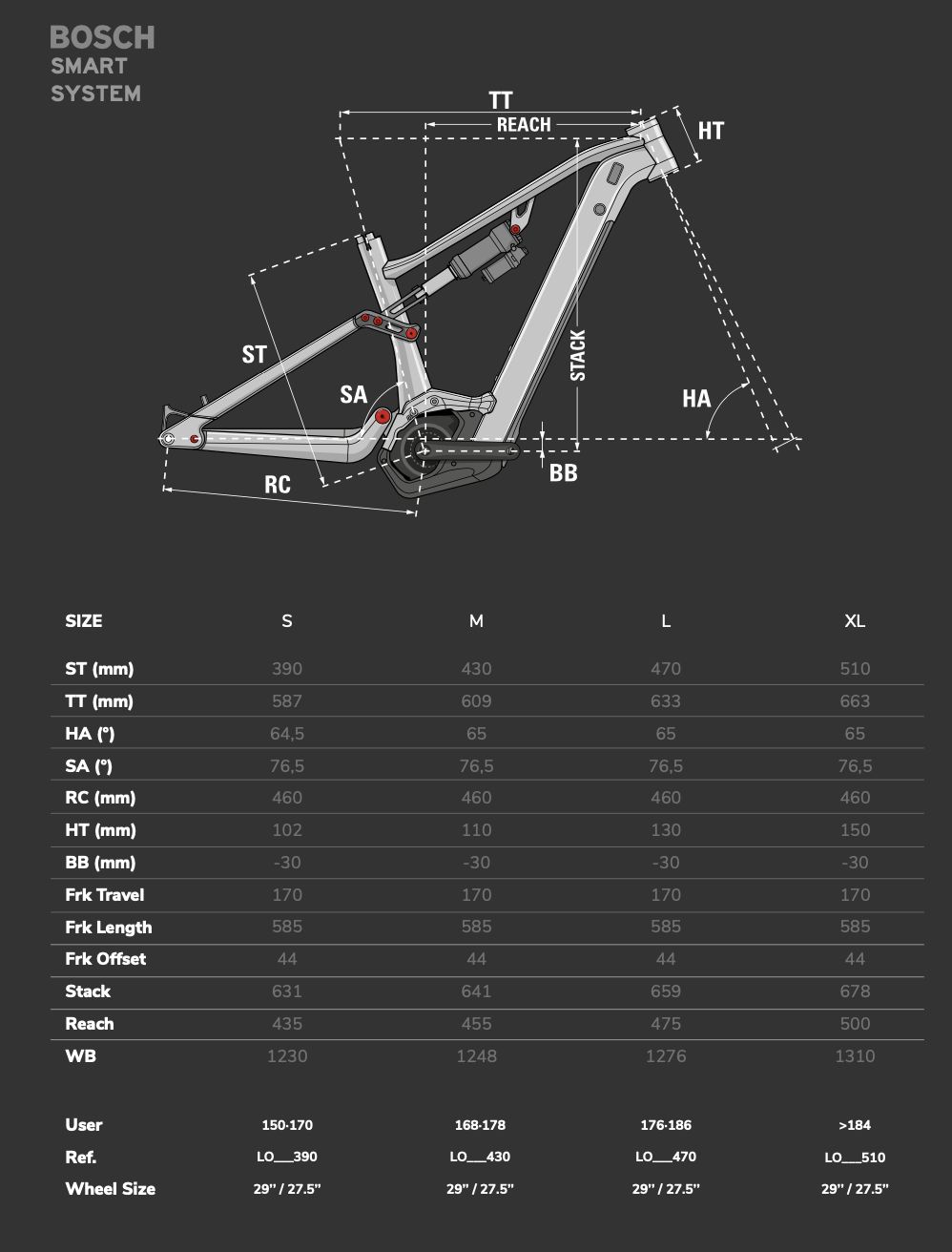

Geometry
