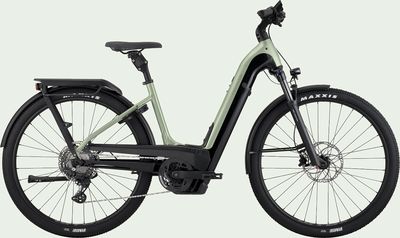

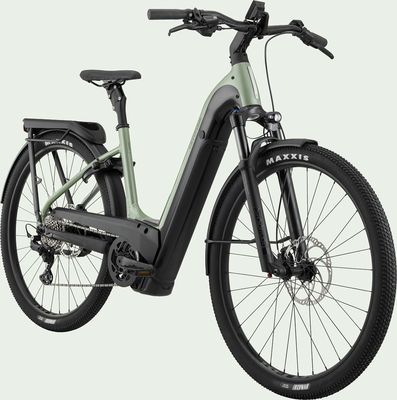

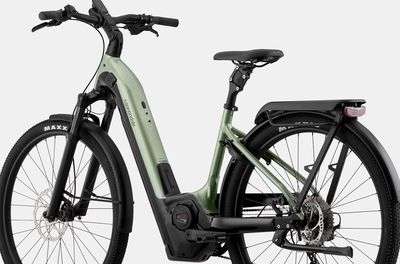

Cannondale Tesoro Neo X 1 Low Step-Through Electric City Bike

Inside this sporty commuting ebike lies the wild and rugged heart of an explorer. With huge range, robust components, and grippy mixed-surface tires, the Tesoro Neo X is built to get you to it all week, and away from it all on the weekend.

Features

• Low step-thru SmartForm C1 Alloy frame/ SR Suntour XCR34 100mm travel fork
• Shimano Deore LinkGlide 10-speed drivetrain / Magura MT C hydraulic disc brakes
• Bosch Smart System - Performance Line CX 250W drive-unit / 750Wh battery / Kiox 300 display & remote / Range: up to 175km

Specifications

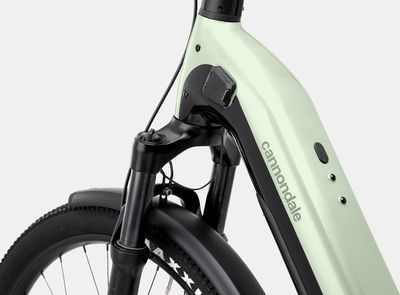

• Frame: SmartForm C1 Alloy, low step-thru, removable 750Wh downtube battery, integrated front running light, tapered headtube, internal cable routing, 135mm QR hub spacing, IS disc mount, motor protection

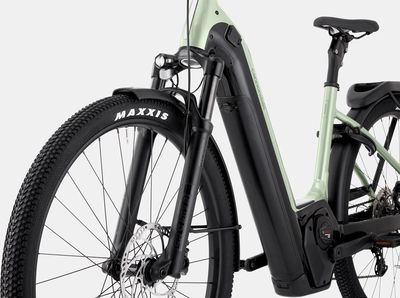

• Fork: SR Suntour XCR34, 100mm, coil, boost spacing, offset - 44mm (S/M) / 51mm (L/X)
• Rims: WTB STX i30 TCS, 32h, tubeless ready
• Hubs: (F) Shimano MT400, 15x110mm thru-axle / (R) Shimano R600, 32H, QR
• Spokes: Stainless Steel, 14g
• Tires: Maxxis Pace 29x2.1" 53-622 (LG/XL) / 27.5x2.1" 53-584 (SM/MD)
• Pedals: Cannondale Fitness
• Crank: FSA for Bosch
• Chain: KMC e500

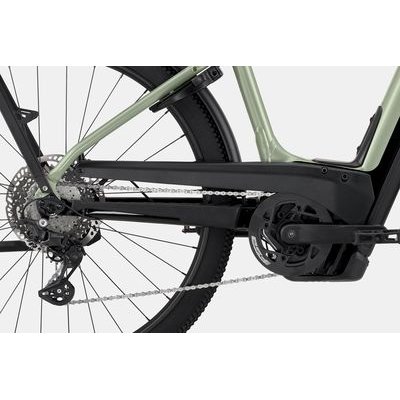

• Rear Cogs: Shimano CUES LG400, 11-48, 10-speed
• Rear Derailleur: Shimano CUES 10-speed
• Shifters: Shimano CUES U6000, trigger style, 10-speed

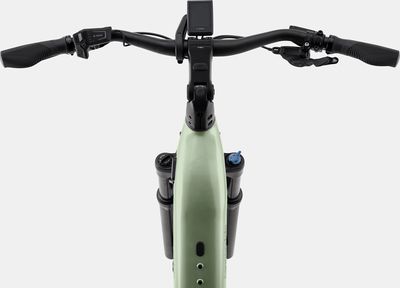

• Handlebar: Cannondale Trekking

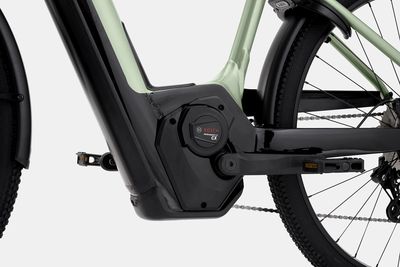

• E-Bike Drive Unit: Bosch Performance Line CX 250W
• Grips: Cannondale Ergo Fitness Dual Density, Lock-on
• E-Bike Battery: Bosch PowerTube, 750Wh
• Stem: Cannondale Urban Intellimount, internal cable routing, SP-Connect compatible phone mount
• E-Bike Display: Bosch Kiox 300 w/ LED remote
• Headset: Integrated Sealed Bearing, Tapered, internal cable routing
• E-Bike Charger: Bosch 4A
• Brakes: Magura MT C 2-piston hydraulic disc, MDR-C rotors, 203mm/203mm
• Saddle: Selle Royal Lookin
• Seatpost: Parallelogram Suspension Seatpost, 31.6, 300mm (SM/MD), 400mm (LG/XL)
• Sizes: S/M, L/XL

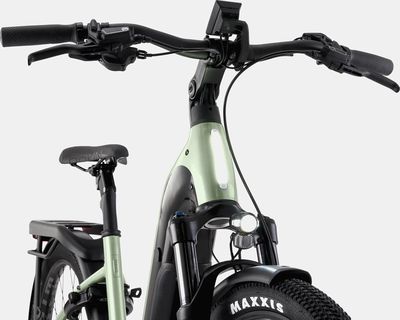

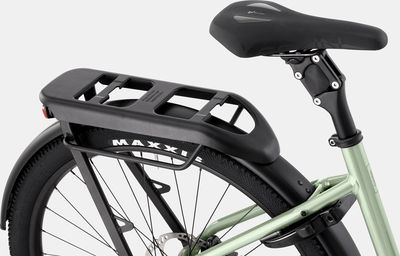

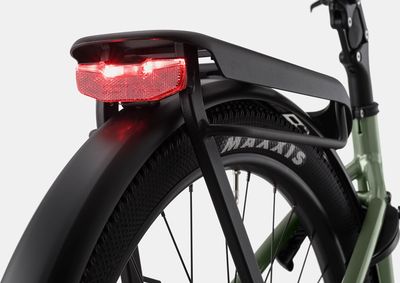

• Extra(s): Integrated headtube running light, Tubus rear rack (25kg, Racktime compatible), Curana Apollo fenders, Axa Blueline 30 headlight / Blueline taillight, kickstand, Abus 4650X frame lock (key-matched with battery lock)

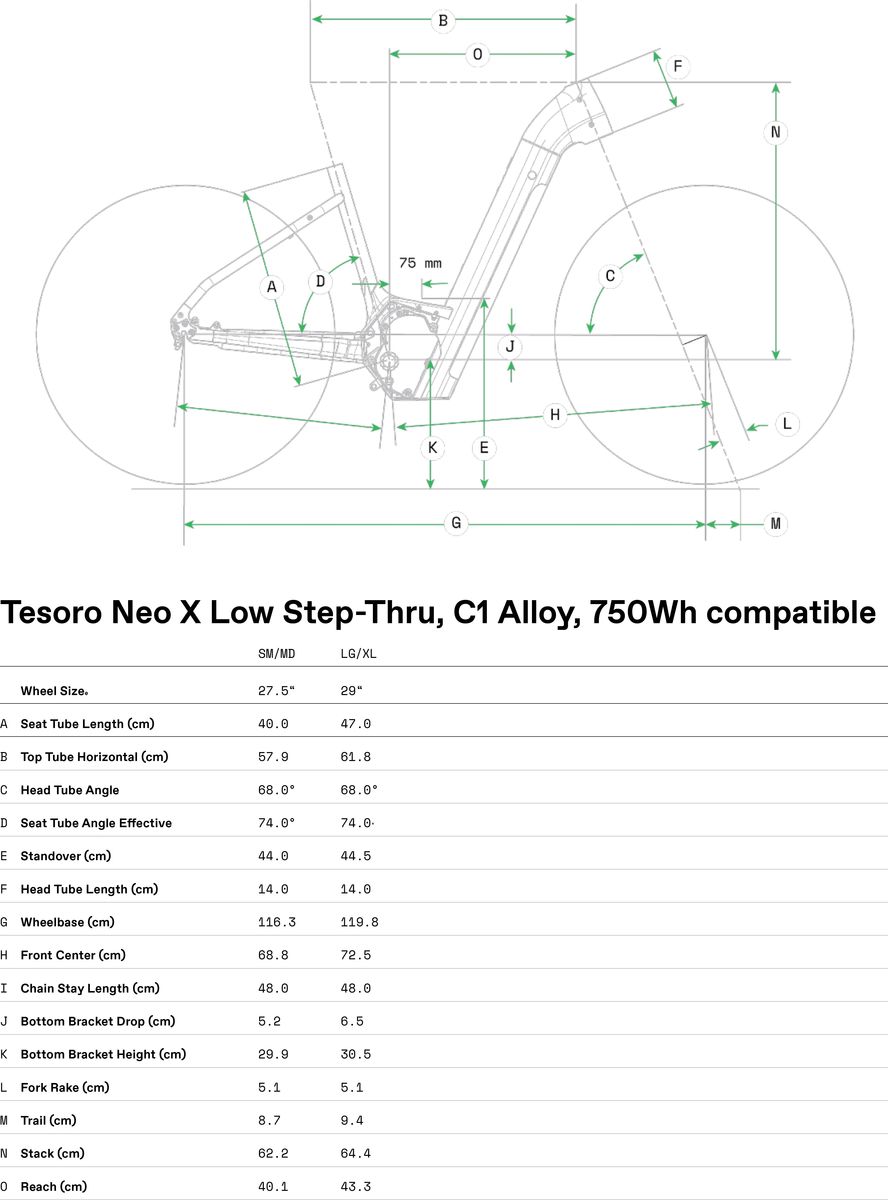

Geometry
