Cannondale Synapse Neo Allroad 1 Electric Gravel Bike

Based on our award-winning long-distance road bike, the Synapse Neo Allroad brings high performance on the pavement or off. With a lightweight carbon frameset, powerful electric drive system, and features like rack mounts and bigger tires, you’ll be ready to roam.

Features

All Roads Are Yours
With a powerful electric drive unit and features for comfort, durability, and practicality, all roads are yours on Synapse Neo Allroad.

Made for the road ahead – no matter what it’s made of
the Synapse Neo Allroad 2 gravel bike is here. It’s made with a Series 2 carbon construction frameset, an ultra-reliable Shimano GRX drivetrain, a Bosch Performance Line SX e-motor, and tough, grippy 40mm tires, so you can roll with confidence over any road, anywhere. It’s practical, too, with mounts for fenders, a rear rack, and even a kickstand.

What it's for
Exploring the backroads with speed and comfort, spirited gravel rides, taking the road less travelled.

Highlights

• Lightweight carbon-fiber frame features sophisticated Series 2 Construction and proven endurance race geometry.
• Rugged wheels with Vittoria 700x40c gravel endurance tires deliver confidence and grip, on pavement or off.
• Bosch Performance Line SX motor offers an ideal combination of low weight and smooth power, delivering up to 55 Nm of torque and 600 watts of output.
• Integrated 400Wh battery offers serious range for long rides, and keeps the weight low for a lively ride-feel.

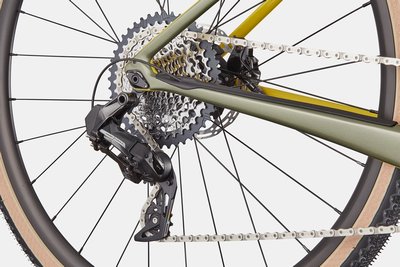

• SRAM’s wireless, electronic Force AXS XLPR 12-speed drivetrain delivers wide-range gearing, effortless shifting, and the reliable simplicity of a single chainring set-up.

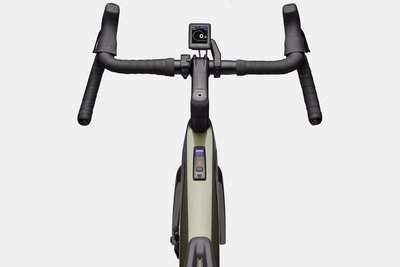

• Flared drop-bars with a Conceal internal-routing stem deliver comfort and control over all kinds of road surfaces.

Specifications

• Frame: Synapse Neo Carbon, Series 2 Carbon construction, internal downtube battery, integrated cable routing, 148mm dropout spacing, 12mm thru-axle, SAVE, flat mount disc, Pletscher kickstand mount (30mm)
• Fork: Synapse Neo Carbon, Series 2 Carbon construction, 1-1/8" to 1.5" Delta steerer, flat mount disc, internal routing, 12x110 thru-axle
• Headset: Integrated, 1-1/8" - 1.5"
• Drive Unit: Bosch Performance Line SX, 25 km/h
• Battery:Bosch Compact Powertube 400Wh
• Charger: Bosch 2A
• Display: Bosch Kiox 300
• Rear Derailleur: SRAM Force AXS XPLR

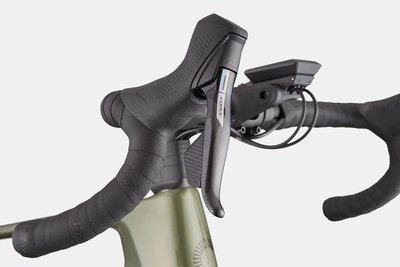

• Shifters: SRAM Force eTap AXS HRD, 12-speed
• Chain: SRAM NX Eagle, 12-speed
• Crank: FSA Bosch E-Bike, SRAM Direct Mount, 38T
• Rear Cogs: SRAM XG-1271 XPLR, 10-44, 12-speed
• Brakes: SRAM Force AXS, 160/160mm CenterLine X rotors
• Brake Levers: SRAM Force eTap AXS
• Wheels: Cannondale GXD10, alloy double-wall rim, 28h
• Spokes: Stainless Steel, 14g
• Hubs: (F) Formula sealed cartridge bearing, 12x110mm thru-axle / (R) Formula sealed cartridge bearing 12x148mm thru-axle
• Tires: Vittoria Terreno Dry, 700x40c, tubeless ready
• Components: Handlebar
• Butted 6061 alloy, 20 deg flare drop
• Stem: Cannondale C1 Conceal, Alloy, 31.8, -6°
• Grips: Fabric Knurl tape, 3mm
• Saddle: Fizik Terra Argo X5, 150mm width, S-alloy rails
• Seatpost: Cannondale 2, UD Carbon, 27.2x350mm (XS-S), 400mm (M-XL)

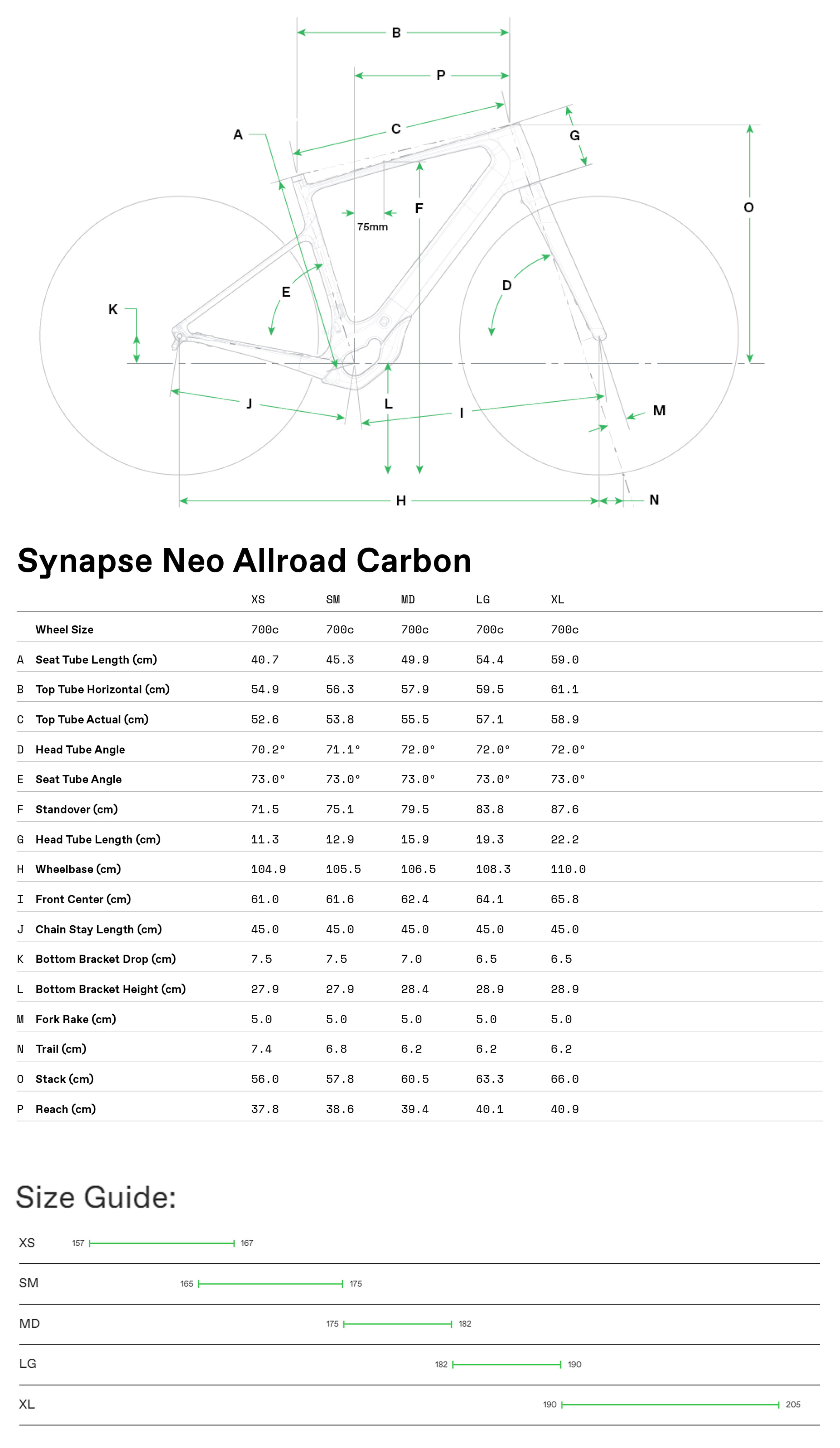

Geometry
