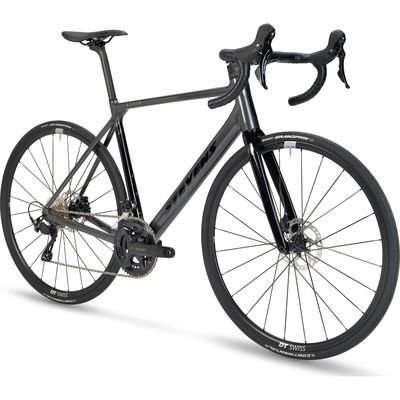

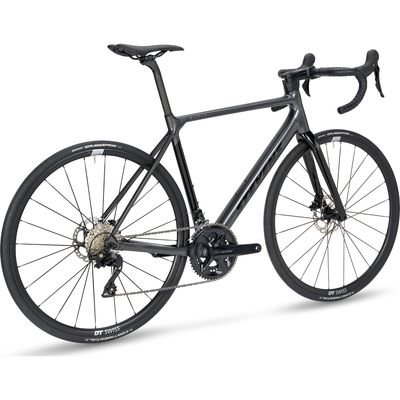

Stevens Aspin Disc Road Bike

The genes are legendary - the design is state-of-the-art. The logical evolution of our renowned Aspin aluminium frame road bike is the Aspin Disc. The bike impresses with its sporty and comfortable all-round geometry, which does not become uncomfortable even after long hours in the saddle and at the same time promises a lot of agility for fast laps. To enable maximum integration and minimise air resistance, the frame is designed for internal cable routing. The Aspin Disc complete bike comes with Shimano's refined, mechanically shifted 105 12-speed component group with 50/34-tooth compact crank and 11-34-tooth cassette - so that you are always in the right gear on the mountain and on the flat. The equipment also includes the proven DT Swiss P 1800 Spline wheels with 28 millimetre wide Continental Grand Prix tyres for increased comfort. In addition to the complete bike, the Aspin Disc can also be customised via our STEVENS custom bike configurator according to personal preferences and with the highest quality components.

Features

• Laterally rigid aluminium frame with all-round geometry
• Integrated cable routing for a clean look and optimised aerodynamics
• Tyre width up to 32 mm possible for high comfort and low rolling resistance
• New, wide range of sizes: 48/51/54/56/58/61/64 cm
• Available as a standard bike and in the STEVENS Custom Bikes configurator

Specifications

• Frame: Aluminium SL 7005 TB
• Fork: STEVENS Full Carbon SL
• Headset: FSA No. 80 CR II 1 1/8"-1 1/2"
• Brake front: Shimano 105
• Brake rear: Shimano 105
• Brake disc: Shimano SM-RT70
• Crankset: Shimano 105
• Derailleur front: Shimano 105
• Derailleur rear: Shimano 105 Shadow
• Chain: Shimano CN-M6100
• Cassette: Shimano 105
• System wheel front: DT Swiss P 1800 Spline
• System wheel rear: DT Swiss P 1800 Spline
• Tires: Continental Grand Prix SL
• Handlebar: Scorpo Aero
• Stem: FSA SMR
• Saddle: Oxygen Triton
• Seatpost: Deda RS Carbon
• Shift/brake lever left: Shimano 105
• Shift/brake lever right: Shimano 105
• Weight: 9.2 kg
• Rider's weight: 115 kg
• Color(s): Smoked Steel
• Sizes: 48, 51, 54, 56, 58, 61, 64 cm

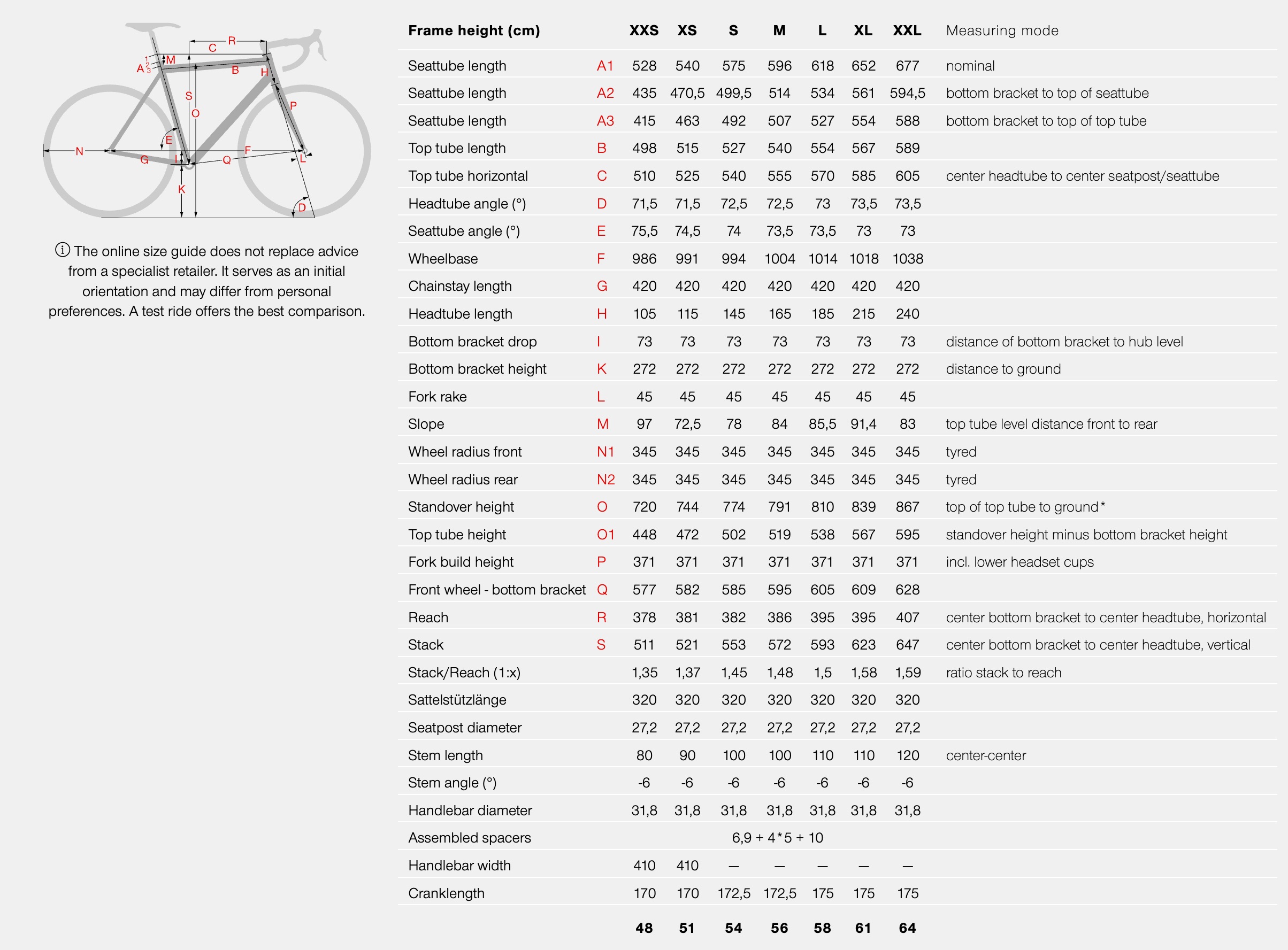

Geometry
