Stevens E-4X Tour HT Gen.1 Electric City Bike

The E-4X Tour offers a first-class setup for your debut into the world of sporty-active cycling pleasure: As a descendant of STEVENS‘ X-Cross bikes, it weighs in at a slim 23.6kg – without sacrificing any robustness, reliability or functionality. The electric support of Bosch's smooth Active Line Plus motor is plenty sufficient, even for long days on the bike. This is thanks to its powerful 500Wh battery. Strong hydraulic disc brakes (180/180 mm!), 9-speed shifting with generous ratio spread and all-round Continental tires expertly handle the most beautiful mountainous routes. It's also got you covered comfort-wise thanks to its active suspension fork as well as sufficient charging capacity.

Features

• Balanced touring pedelec with functional specs
• Bosch G3 Active Line Plus system plus reliable SunRace 9-speed drivetrain
• 500 Wh battery for long mileage and reasonable range
• Precise Tektro disc brakes (180/180 mm)
• Comfortable suspension fork w/ tapered steerer

Specifications

• Frame: Aluminium 6061 TB
• Fork: SR Suntour Mobie25 LOR
• Headset: STEVENS AH Taper 1 1/8"-1 1/2"
• Brake front: Tektro HD-T280
• Brake rear: Tektro HD-T280
• Brake disc: Shimano SM-RT30
• Crankset: Oxygen E-Scorpo
• Motor sprocket: STEVENS
• Derailleur rear: Sunrace RDM93
• Chain: Shimano CN-HG53
• Cassette: SunRace CSM98
• Pedals: MTB Alu Flatpedal Reflex
• Engine: Bosch G3 Active Line Plus
• Battery: Bosch PowerPack 500
• Charger: Bosch 4A charger
• Hubs rear: Formula CL-52
• Hubs front: Strummer RTP-1
• Rims: Oxygen RM-26 Disc
• Tires: Continental Double Fighter III
• Handlebar: Oxygen E-Scorpo
• Stem: Oxygen E-Scorpo
• Saddle: Oxygen Havoc
• Seatpost: Oxygen E-Scorpo
• Shift lever right: Sunrace DLM903
• Brake lever: Tektro HD-T280
• Display: Bosch Purion
• Headlight: Trelock I Veo
• Taillight: Trelock Duo Flat
• Carrier: Racktime E-14 RTA rear rack
• Mudguards: SKS mudguards
• Kickstand: STEVENS Edge
• Bell: STEVENS D85 bell
• Weight: 23.6 kg
• Max. Rider's weight: 140 kg
• Color(s): Glazed Green
• Sizes: G 48, 52, 55, 58, 61 cm

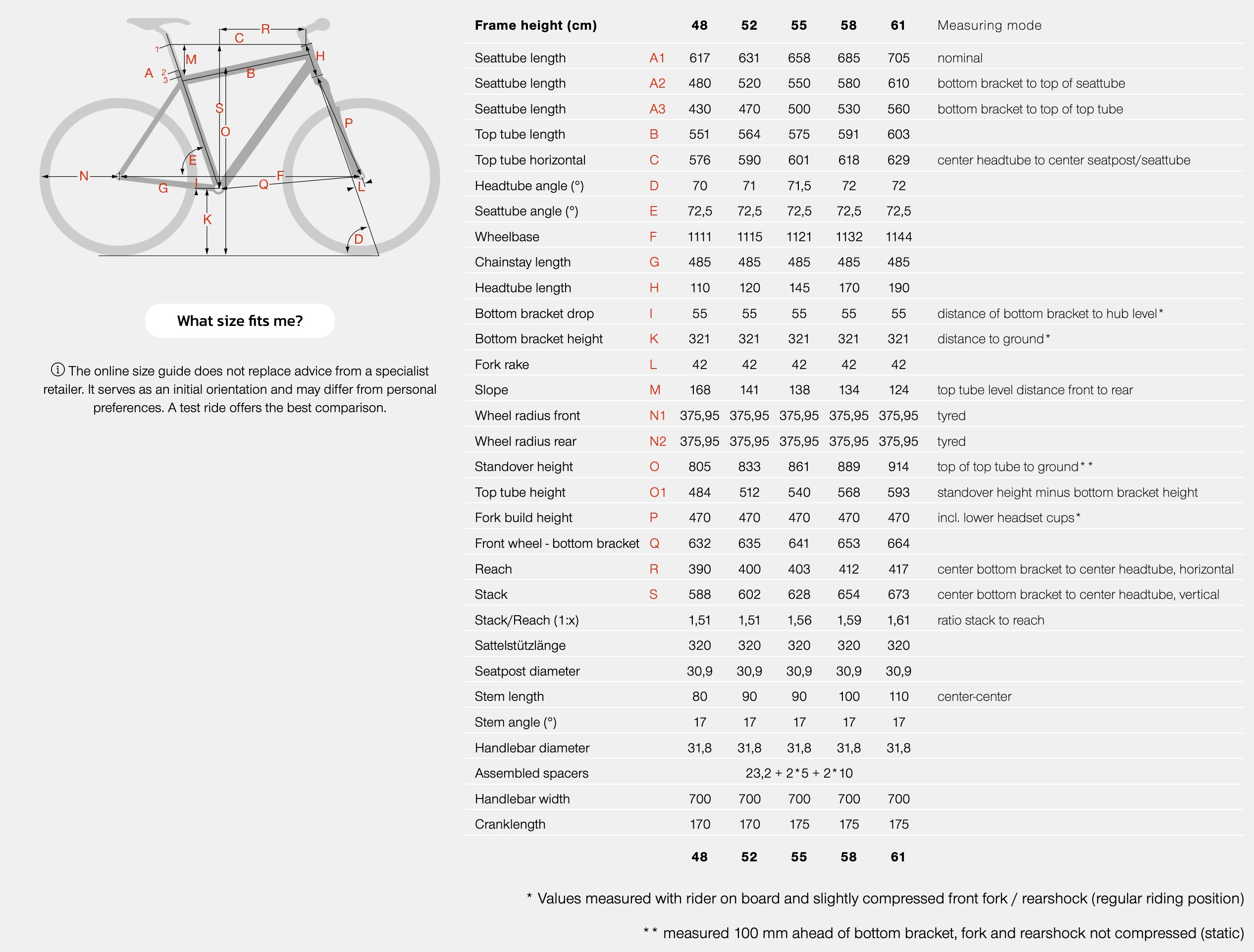

Geometry
