Stevens E-Brione Forma Electric City Bike

This is how tough, urban everyday use works. Lightweight, stable aluminum frame in Forma sizes 46, 52 and 56 cm with semi-integrated PowerPack 500 Wh battery from Bosch, powered by the Active Line Plus drive unit with 50 Nm maximum torque. Plus an informative Bosch Intuvia display, coaster brakes plus Tektro disc brakes and Schwalbe Marathon tires. The SR Suntour Mobie suspension fork also offers city-friendly comfort.

Features

• Comfortable, reliable pedelec with toothed belt
• Extra silent Bosch G3 Active Line Plus 250-watt drive
• Robust Shimano Nexus Inter-5E hub gears
• Coaster brake plus Tektro hydraulic disc brake
• 500 Wh battery for long mileage and range

Specifications

• Frame: Aluminium 6061
• Fork: SR Suntour NCX-D Air LO
• Headset: STEVENS AH Taper 1 1/8"-1 1/2"
• Brake front: Shimano BR-MT410
• Brake rear: Shimano BR-MT410
• Brake disc front: Shimano SM-RT54
• Brake disc rear: Shimano SM-RT54
• Crankset: Shimano FC-EM600
• Motor sprocket: Shimano
• Derailleur rear: Shimano Deore Shadow+
• Chain: KMC X10 EPT
• Cassette: Shimano CS-LG600-10
• Pedals: ATB Alu Pro Reflex
• Engine: Shimano EP600
• Battery: Shimano EP6 BT-EN606
• Charger: Shimano 2A charger
• Hubs rear: Formula CL-52
• Hubs front: Formula CL-51
• Rims: Oxygen RM-26 Disc
• Tires: Schwalbe Marathon
• Handlebar: Oxygen E-Scorpo
• Stem: Oxygen Versa II, adjustable
• Saddle: Selle Royal Nuvola Gent
• Seatpost: Oxygen E-Scorpo
• Shift lever right: Shimano Deore
• Brake lever: Shimano BL-MT402-3A
• Display: Shimano SC-EN610
• Headlight: B+M IQ Myc Friendly E
• Taillight: B+M Shine Evo
• Carrier: Racktime Shine Evo RTA rear rack
• Mudguards: SKS mudguards
• Kickstand: Pletscher Comp kickstand
• Bell: STEVENS D85 bell
• Weight: 23.8 kg
• Max. Rider's weight: 140 kg
• Color(s): Phantom Grey
• Sizes: L 46, 50, 54 cm

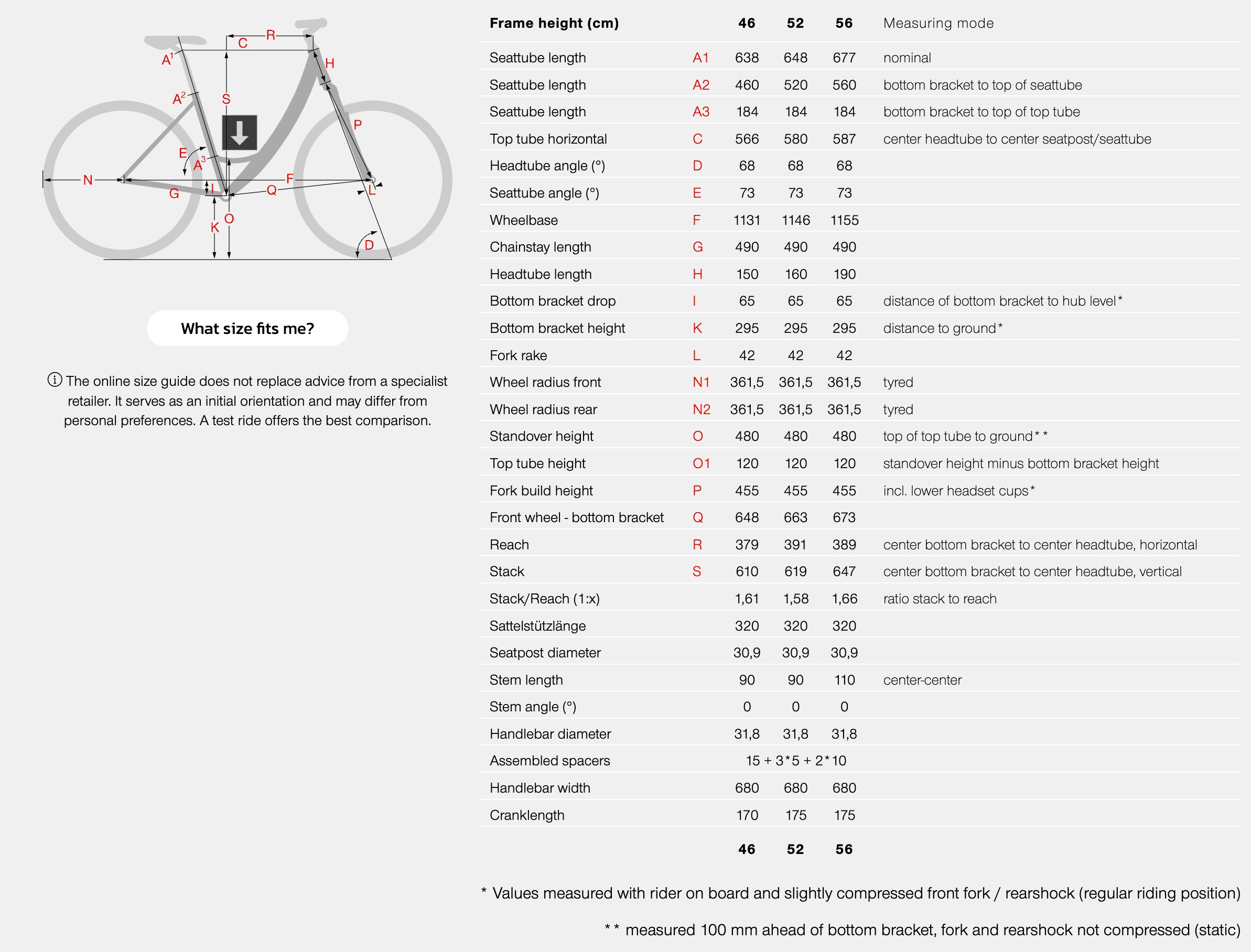

Geometry
