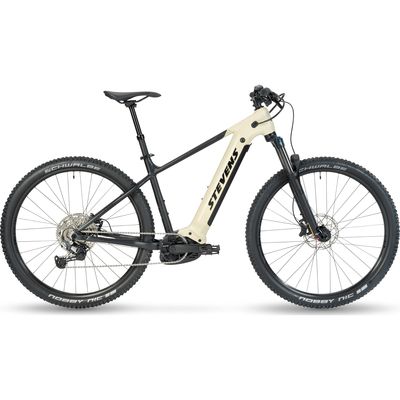

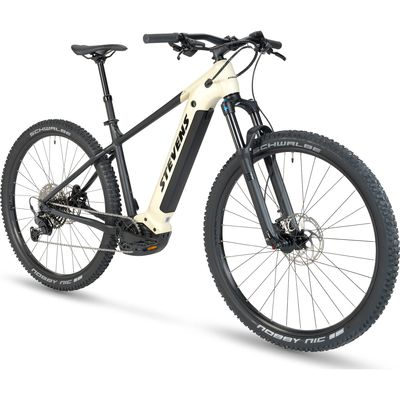

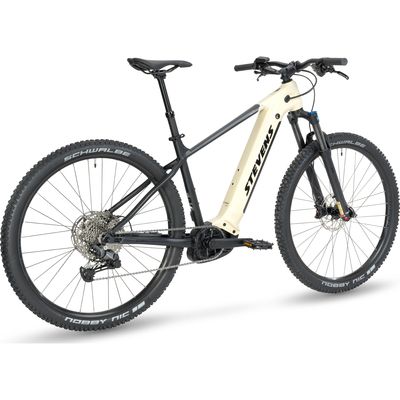

Stevens E-Cayolle Gen.2 Electric Mountain Bike

On the E-Cayolle you enjoy the energetic support of the Bosch Performance Line CX with up to 85 Nm of torque from the first pedal stroke. The drivetrain of the E-Cayolle is specially adapted to the needs of powerful e-bike motors. The Shimano CUES U6000 11-speed groupset enables smooth shifting even under load and thus many relaxed kilometres.

Features

• Strong e-hardtail with fully-integrated 625 Wh battery
• Bosch G4 Performance Line CX drive unit & compact Purion 200 display
• SR Suntour 120 mm air suspension fork
• Precise Shimano CUES U6000 Linkglide 11-speed groupset
• Trail-worthy Schwalbe Nobby Nic tires and frame size-specific wheels

Specifications

• Frame: Aluminium 6061 DB
• Fork: SR Suntour XCR34 Air LOR
• Headset: STEVENS MTB Taper 1 1/8"-1 1/2"
• Brake front: Tektro HD-M535
• Brake rear: Tektro HD-M530
• Brake disc: Tektro TR180-45A
• Crankset: e*thirteen e*spec Plus
• Motor sprocket: STEVENS E-MTB
• Derailleur rear: Shimano CUES U6000 Shadow+
• Chain: Shimano CN-LG500
• Cassette: Shimano CS-LG400-11
• Pedals: MTB Flatpedal Reflex
• Engine: Bosch G4 Performance Line CX
• Battery: Bosch PowerTube 625
• Charger: Bosch 4A charger
• Hubs rear: Strummer CLTP-1
• Hubs front: Strummer CLTP
• Rims: Sun Ringlé Düroc TR35
• Tires: Schwalbe Nobby Nic Performance
• Handlebar: Oxygen Scorpo
• Stem: Oxygen E-Scorpo
• Saddle: Oxygen Havoc
• Seatpost: Oxygen E-Scorpo DPR-E
• Shift lever right: Shimano CUES U6000
• Brake lever: Tektro HD-M530 | 29": Tektro HD-M535
• Display: Bosch Purion 200
• Weight: 23.7 kg
• Max. Rider's weight: 140 kg
• Color(s): Sandstone Black
• Sizes: 27.5" - 14" | 29" - 16", 18", 20", 22"

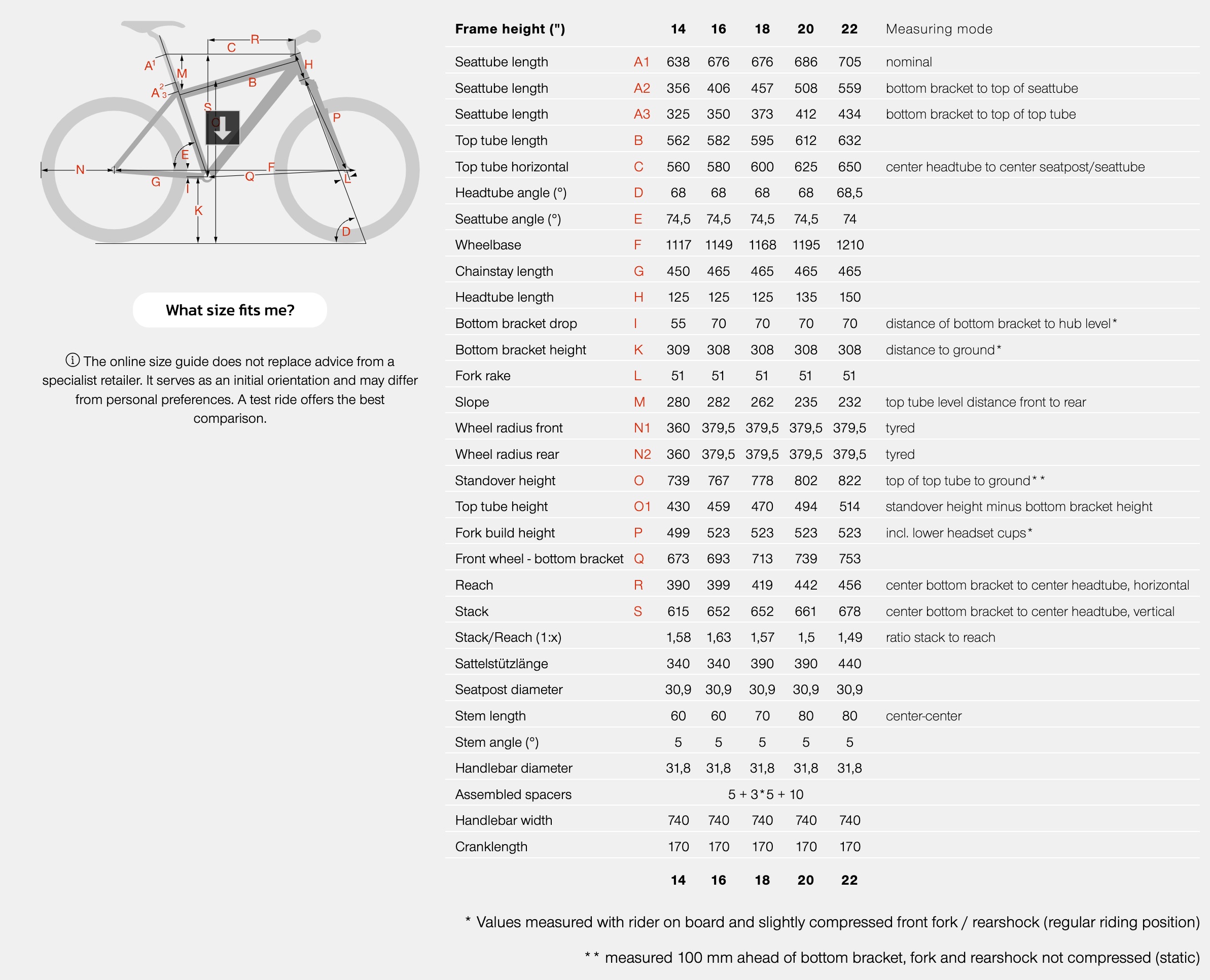

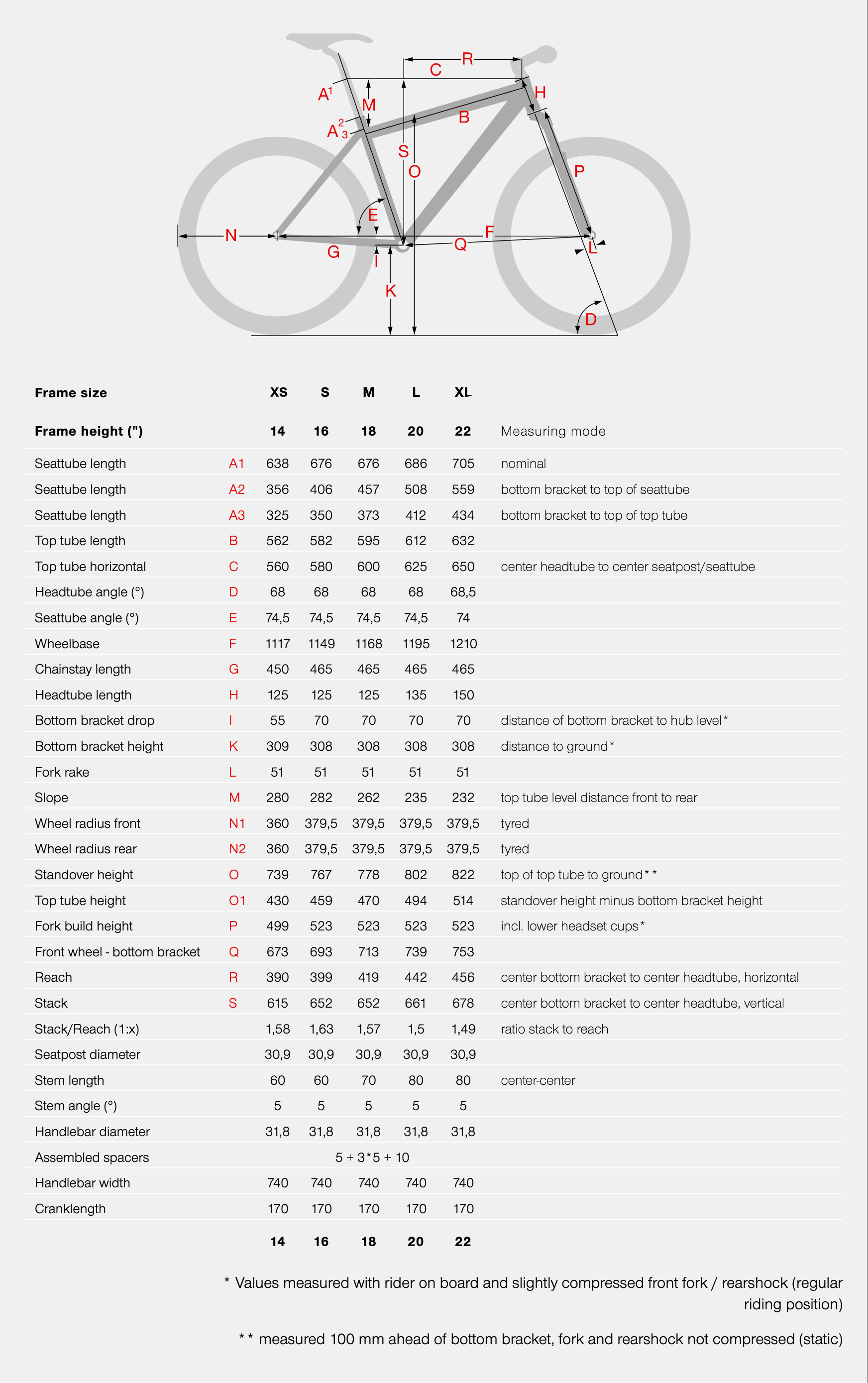

Geometry
